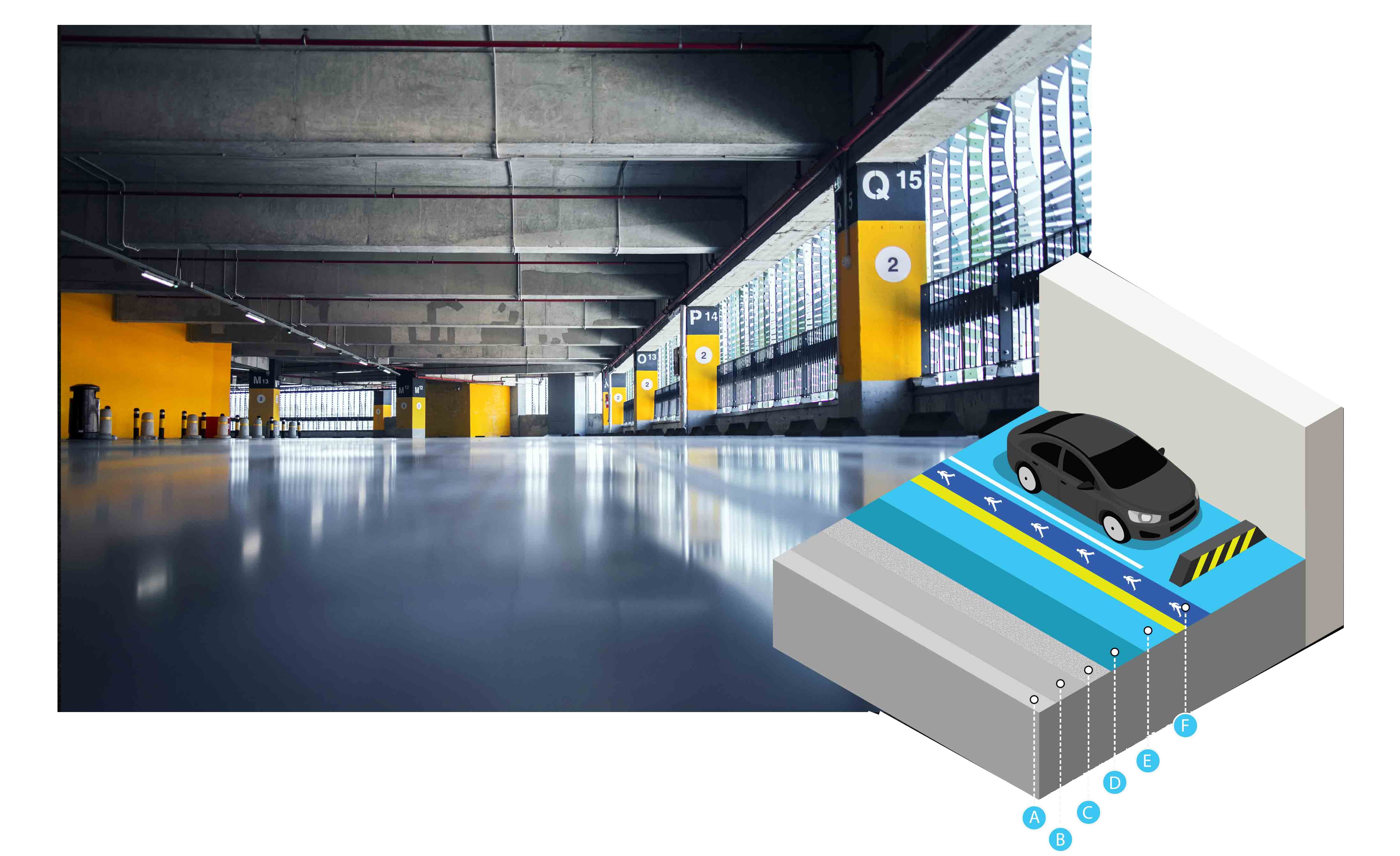

Indoor car park - Epoxy system

A. Concrete Substrate

Grinding surface: remove laitance and prepare a levelled concrete floor free from contaminants (grease, oil etc.). Touch up (minor repairs) through ADVAPUTTY in order to seal superficial cracks/holes.

B. Advapoxy Primer

Application to seal the surface. Priming is not normally required provided the substrate is sound, untreated and good quality nonporous concrete. If any doubts exist of the quality of the concrete, or if it is porous it should be primed with ADVAPOXY PRIMER.

C. Base Coat

Coating application of ADVAPOXY 1500 (Solvent free, 100% solids, heavy duty epoxy floor coating). It is a two-component system resin hardener mixed with heavy duty low speed mixing drill.

D. Silica Aggregates

Application of AdvaAntislip grains: slip resistance, covers irregularities, better abrasion resistance

E. Top Coat

Final coat (Topcoat) of ADVAPOXY 1500

F. Lining and Numbering

Lining and numbering for car parks can be doneafter 24H

Indoor car park systems

Car park floorings are meant to withstand a significant amount of automotive oils, heavy vehicles, water ingress etc.

Floor coating systems for car parks meet high demands depending if the car park is indoor or exposed and are subject to many different stresses, including atmospheric conditions.

For indoor car parks, Aim Industries uses a solvent free, epoxy resin floor coating: Advapoxy 1500.
While for an outdoor car park, Aim Industries uses polyurethane coating.

What are the benefits of our car park flooring system ?

  • • Durable
  • • Resistant to wear/tear of heavy foot traffic
  • • Resistant to water
  • • Resists degradation
  • • Rapid curing
  • • Slip resistance
  • • Color options

Application process

1. Surface preparation:
- Grinding surface: remove laitance and prepare a levelled concrete floor free from contaminants (grease, oil etc.)
- Touch up (minor repairs) through ADVAPUTTY in order to seal superficial cracks/holes.

2. Advapoxy Primer
application to seal the surface. Priming is not normally required provided the substrate is sound, untreated and good quality nonporous concrete. If any doubts exist of the quality of the concrete, or if it is porous it should be primed with ADVAPOXY PRIMER.

3. Coating application of ADVAPOXY 1500
(Solvent free, 100% solids, heavy duty epoxy floor coating). It is a two-component system resin hardener mixed with heavy duty low speed mixing drill.

4. Application of AdvaAntislip grains: slip resistance, covers irregularities, better abrasion resistance

5. Final coat (Topcoat) of ADVAPOXY 1500

6. Lining and numbering for car parks can be doneafter 24H

Advapoxy 1500

SOLVENT FREE, EPOXY RESIN FLOOR COATING

ADVAPOXY 1500 is epoxy solvent free high build pigmented epoxy protective coating for concrete floors. The fully cured film has good abrasion and impact resistance, good adhesion to concrete floors and good resistance to water, mild chemicals and solvents.

What are the benefits of Advapoxy 1500 ?

  • • Solvent free - no odor during application.
  • • Slip resistant - different textures available to suit conditions to avoid slipping.
  • • Liquid applied providing complete protection. Durable, low maintenance costs.
  • • Available in a wide range of colors to improve theworking environment and identify slip hazard areas.

Specifications

The total dry film thickness of the coating shall be a minimum of 400 microns and shall have a compressive strength of 70 N/ mm2, flexural strength of 40 N/mm2 and tensile strength of 20 N/mm2. The floor shall be prepared and the coating mixed and applied in accordance with the manufacturer's current data sheet.
